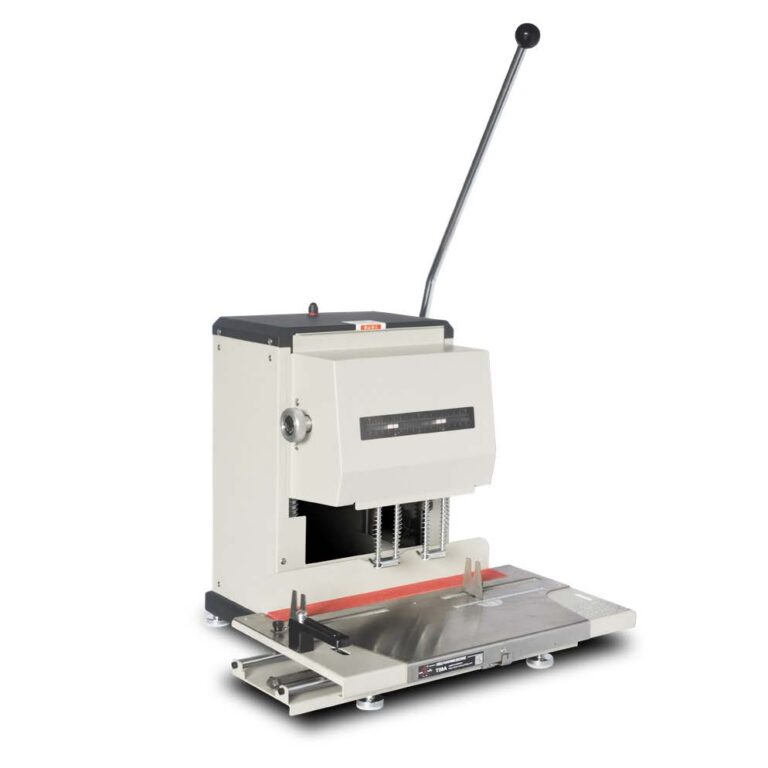

Rynak RB502

Twin Head Paper Drill

Heavy duty electric twin head drill with sliding table

Drill Head Qty:   2
Drill Thickness:   ≤ 50mm
Hole Diameter:   3.0-8.0mm
Hole Distance:   45-160mm
Presets
4   -21-70-21-
6   -19-19-N-19-19-
4   -45-65-45-
4   -80-80-80-
4   -70-70-70-
Margin Adjustment:   6-36mm
Work Plate Size:   470 x 260mm
Drilling Mode:   Electric
Machine Dimension:   51 x 50 x 48cm
Voltage & Power:   AC220/110V±10%,50/60HZ 200W
Weight & Packing Size:   54kg 60*59*58cm

MAIN FEATURES
Twin spindle electric drill with sliding table and adjustable centers
Hole centers 45-220mm Drill depth 50mm

The electric paper drill stands out by its multi-hole optional and user-friendly
functions.
The puncher is equipped with a movable drill head and working plate,the
programming bar has default settings for the hole patterns of most common
filing systems, e.g. patterns with 2, 4, and 6 holes. can make a quick drill.
Max stack height(drilling thickness) up to 50mm,drill diameter 3.0-8.0mm
optional.
Versatility, Labor-saving operation, and convenient handling.
