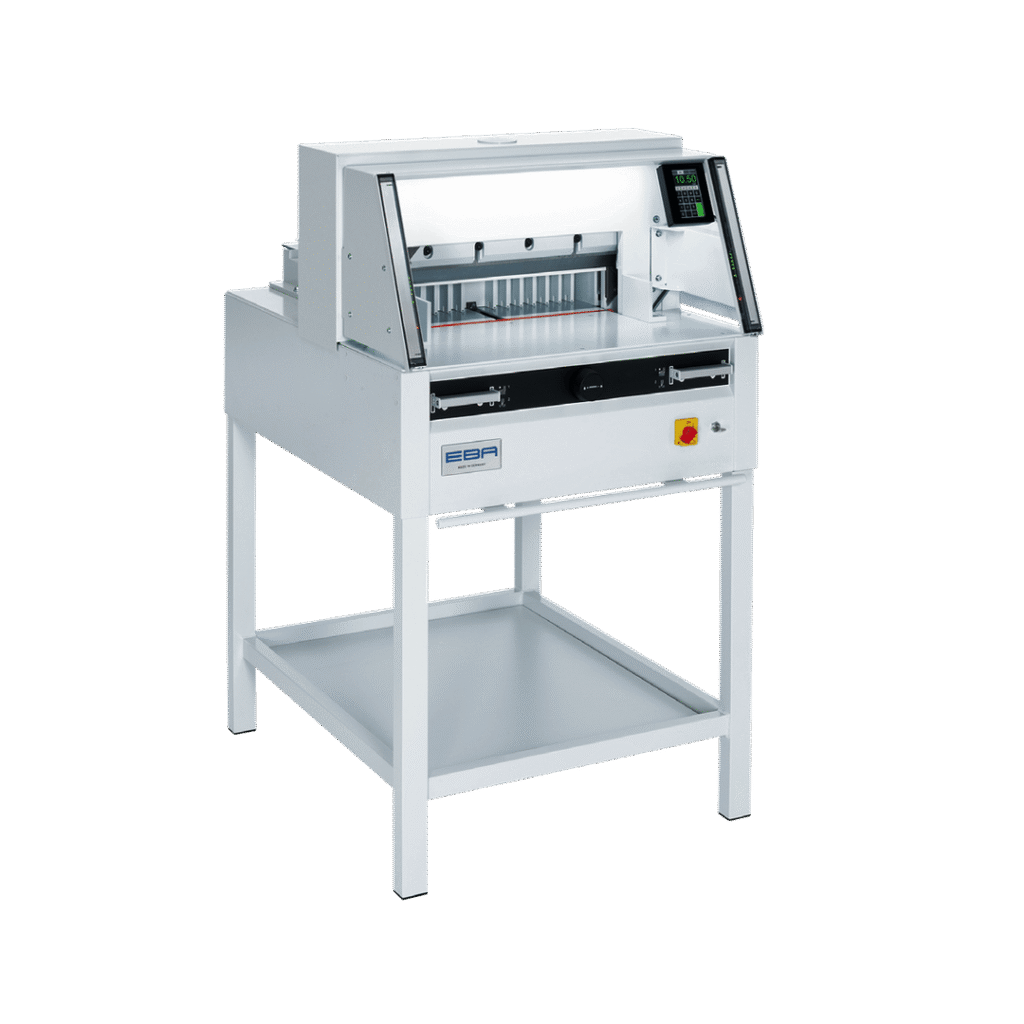

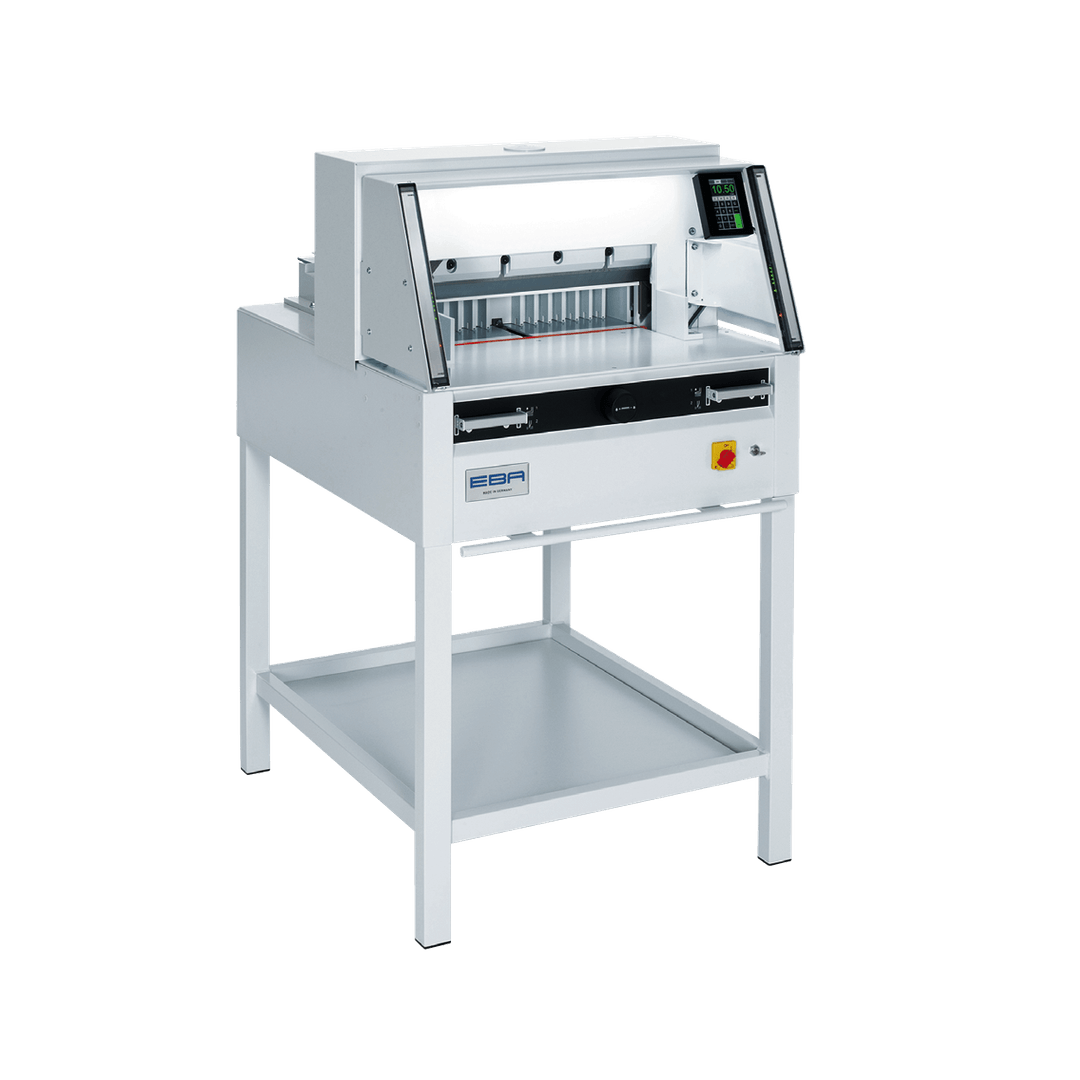

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: IR light beam safety curtain on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation.
| Cutting length: | 475 mm |
| Cutting height: | 80 mm |
| Table depth: | 450 mm |
| Narrow cut: | 35 mm |

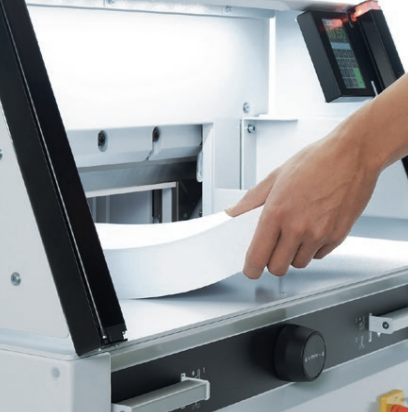

IR safety curtain.
The light beam safety curtain in the working area of this professional guillotines ensures the highest level of safety and cutting convenience.

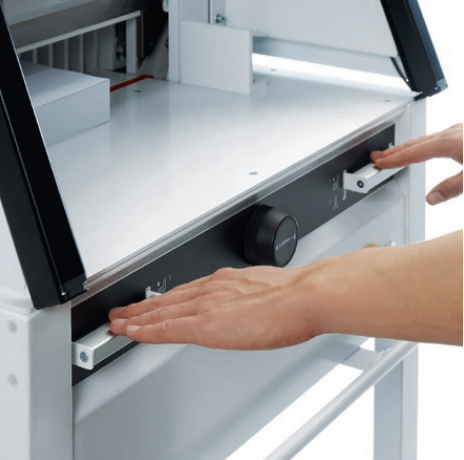

Patented EASY-CUT activating bars.
Blade and clamp can be activated independently via the two-step blade activating bars with separate trigger points for blade and clamp.

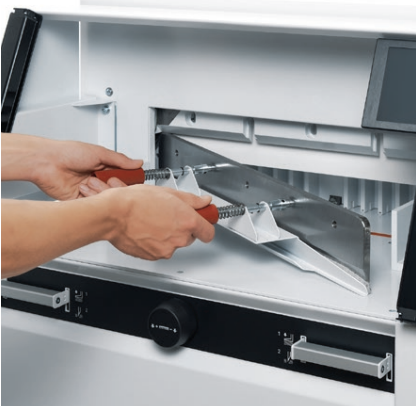

Safe blade change.
Safe and convenient blade change without removing covers. Blade changing device covers cutting edge of blade to protect the operator.

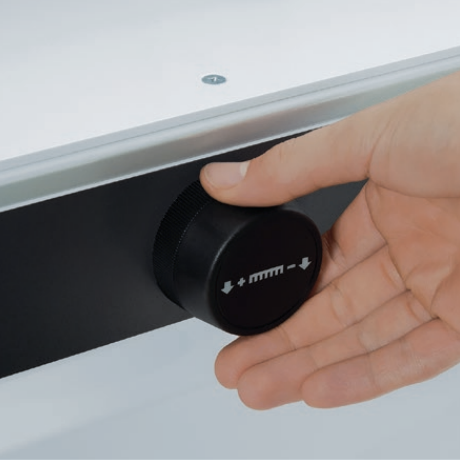

Electronic hand wheel.
Ideal for manual backgauge positioning, the electronic hand wheel has infinitely variable speed control from very slow to very fast.

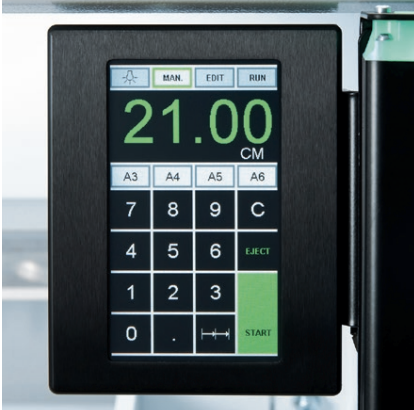

Easy-to-use touch pad
Extremely convenient: Electronic, programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with99 steps in each program can be stored.

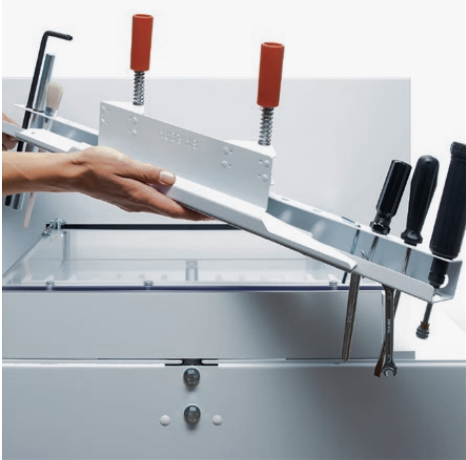

Practical tool holder.
The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
