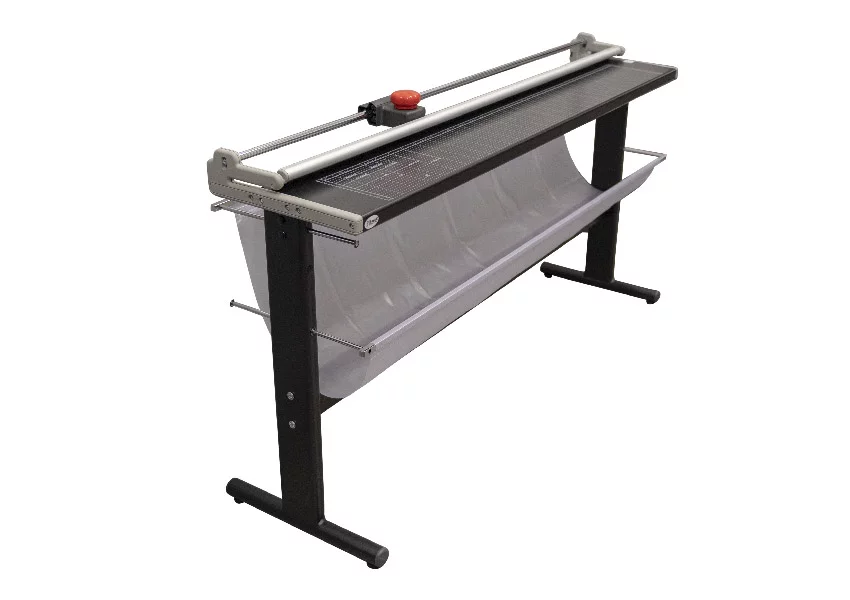

Neolt Manual Trim
Rotary Blade Cutter
These Industrial quality Neolt paper trimmers are perfect for cutting drawings, plans, posters, trimming laminations etc. Smooth running blade carriage. Rotary blade in hardened steel. Sheet press made of transparent plastic. Maximum paper thickness 0.8mm.
Sold with or without stand/retrieval tray for trimmings.
 | 0,4mm |
 | 100/130/150/200/250cm |
*The thickness may vary depending on the type of material
Main Features
Blade carriage sliding on a round bar
Hardened steel rotating blade
Powder-coated metal parts
Painted steel worktable with serigraphy for cutting reference
Optional
Roll holder
LED lamp for higher visibility on the cutting area
Materials
Paper
Photo-film
Photo Paper
Polyprop.film
The manufacturer reserves the right to change the technical and aesthetic specifications without prior notice.
Datasheet | 100 | 130 | 150 | 200 | 250 |
Cutting thickness | 0,4 mm | 0,4 mm | 0,4 mm | 0,4 mm | 0,4 mm |
Maximum Cutting Width | 100 cm | 130 cm | 150 cm | 200 cm | 250 cm |
Dimensions | 124 cm | 154 cm | 174 cm | 224 cm | 274 cm |
Width | 48 cm | 48 cm | 48 cm | 48 cm | 48 cm |
Cutter Height | 98 cm | 98 cm | 98 cm | 98 cm | 98 cm |
Worktable height | 87 cm | 87 cm | 87 cm | 87 cm | 87 cm |
Weight | 11 kg | 14,1 kg | 16,1 kg | 20,2 kg | 25,2 kg |
Stand weight | 16,3 kg | 17,1 kg | 17,6 kg | 19,4 kg | 22,8 kg |
