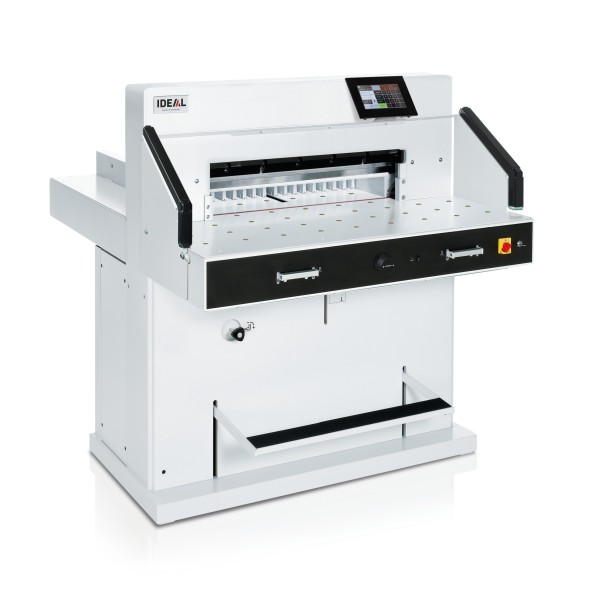

Our top model: guillotine with EASY-CUT, hydraulic clamp, programmable power backgauge with electronic control module and IR light beam safety curtain on the front table.
| Cutting length: | 720 mm |
| Cutting height: | 80 mm |
| Table depth: | 720 mm |
| Narrow cut: | 20 mm |
IR safety curtain.
The light beam safety curtain in the working area of this professional guillotine ensures the highest level of safety and cutting convenience.
Patented EASY-CUT activating bars.
A cut can be executed conveniently by means of the patented EASY-CUT blade activating bars, which guarantee a safe two-hand operation.

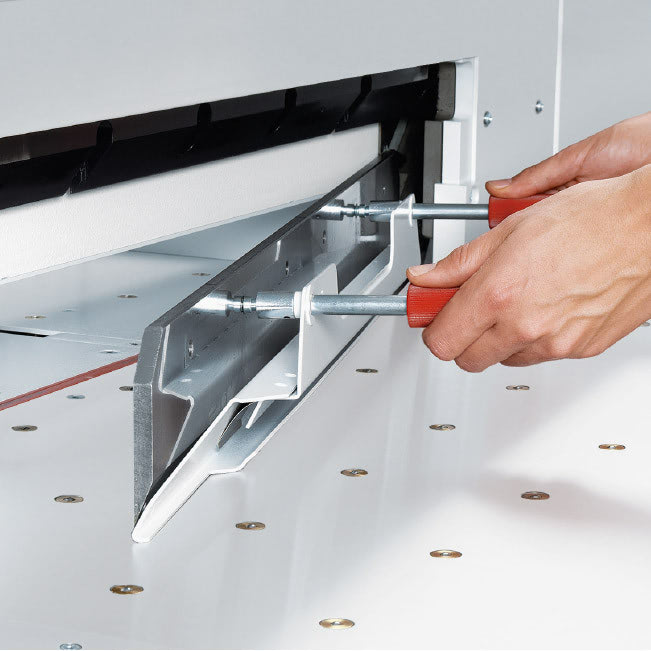

Safe blade change.
Safe and convenient blade change without removing covers. Blade changing device covers cutting edge of blade to protect the operator.
Electronic hand wheel.
Ideal for manual backgauge positioning, the electronic hand wheel has infinitely variable speed control from very slow to very fast.

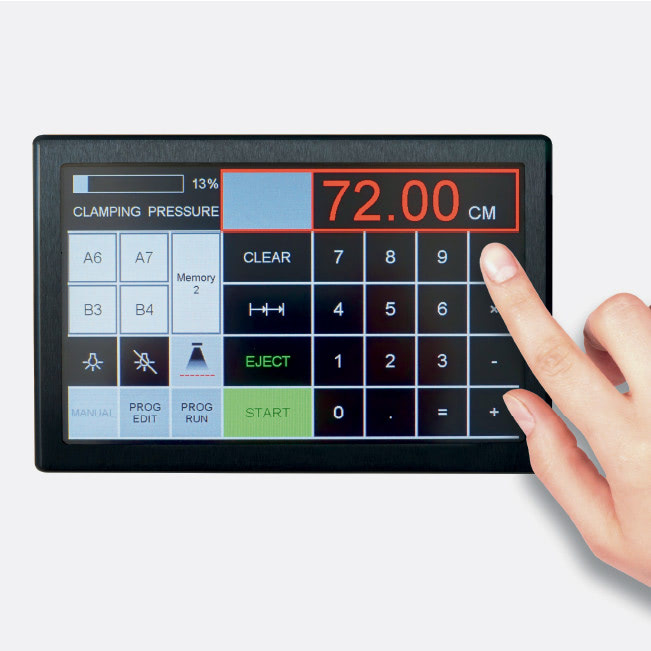

Easy-to-use large 7-inch touch pad.
Extremely convenient: Electronic, programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.
Practical tool holder.
The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
Technical data
Dimensions and weight
Height: 1335 mm
Width: 1305 mm
Depth: 1540 mm
Weight: 588 kg
with side tables: 2100 x 1600 mm
Weight with side tables: 628 kg
