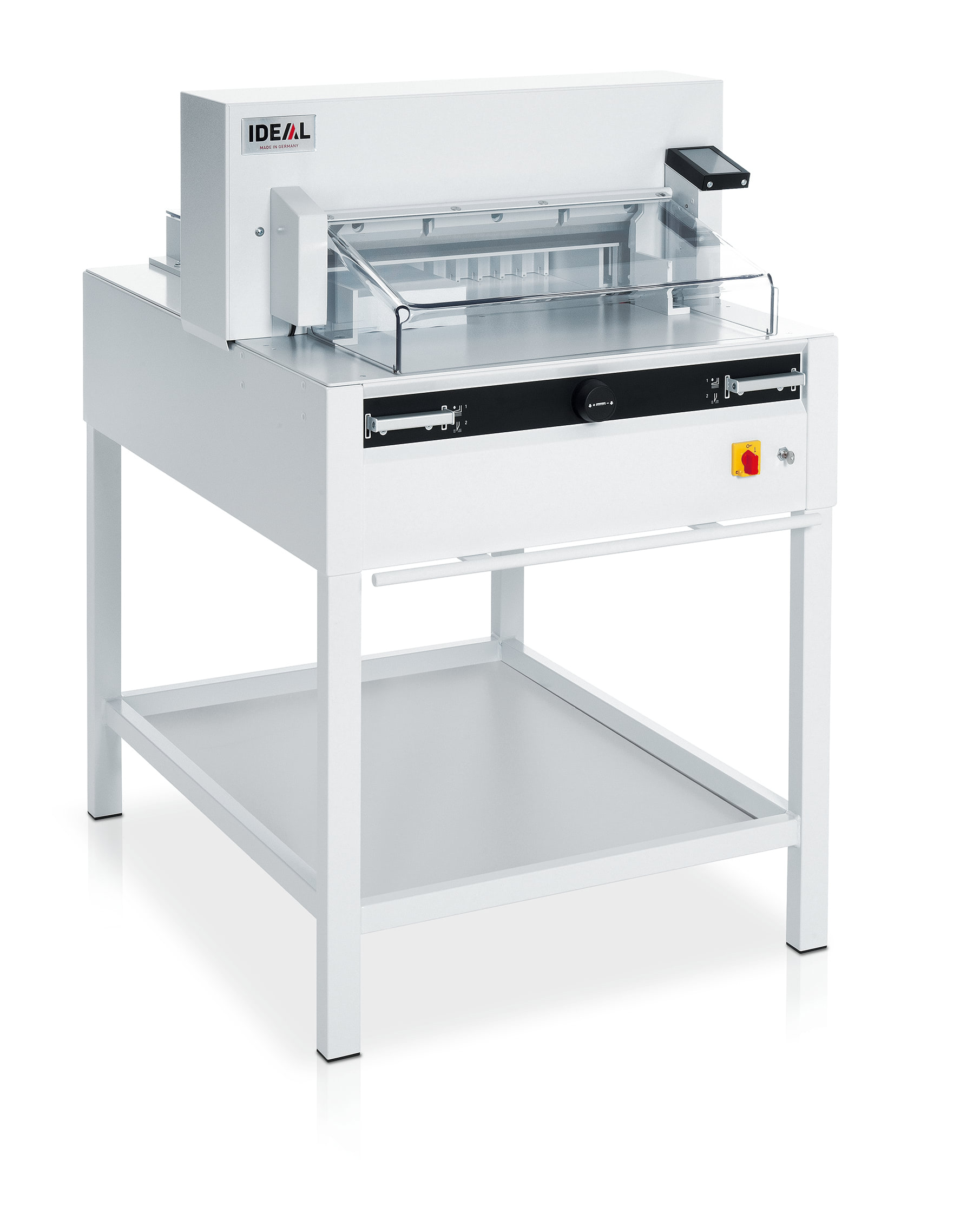

Professional guillotine with EASY-CUT, automatic clamp, programmable power backgauge with touch pad and safety guards (front and rear).
| Cutting height: | 80 mm |
| Cutting length: | 520 mm |
| Table depth: | 520 mm |
| Narrow cut: | 35 mm |
Transparent safety guard.
The hinged safety guard has to be closed to unlock the blade lever for the cutting process.
Patented EASY-CUT activating bars.
A cut can be executed conveniently by means of the patented EASY-CUT blade activating bars, which guarantee a safe two-hand operation.
Safe blade change.
Safe and convenient blade change without removing covers. Blade changing device covers cutting edge of blade to protect the operator.
Electronic hand wheel.
Ideal for manual backgauge positioning, the electronic hand wheel has infinitely variable speed control from very slow to very fast.
Easy-to-use touch pad.
Extremely convenient: Electronic, programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.
Practical tool holder.
The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
Technical data
Dimensions and weight
Height: 1293 mm
Width: 860 mm
Depth: 1120 mm
Weight: 252 kg
Width with side tables: 1436 mm
Weight with side tables: 261 kg
